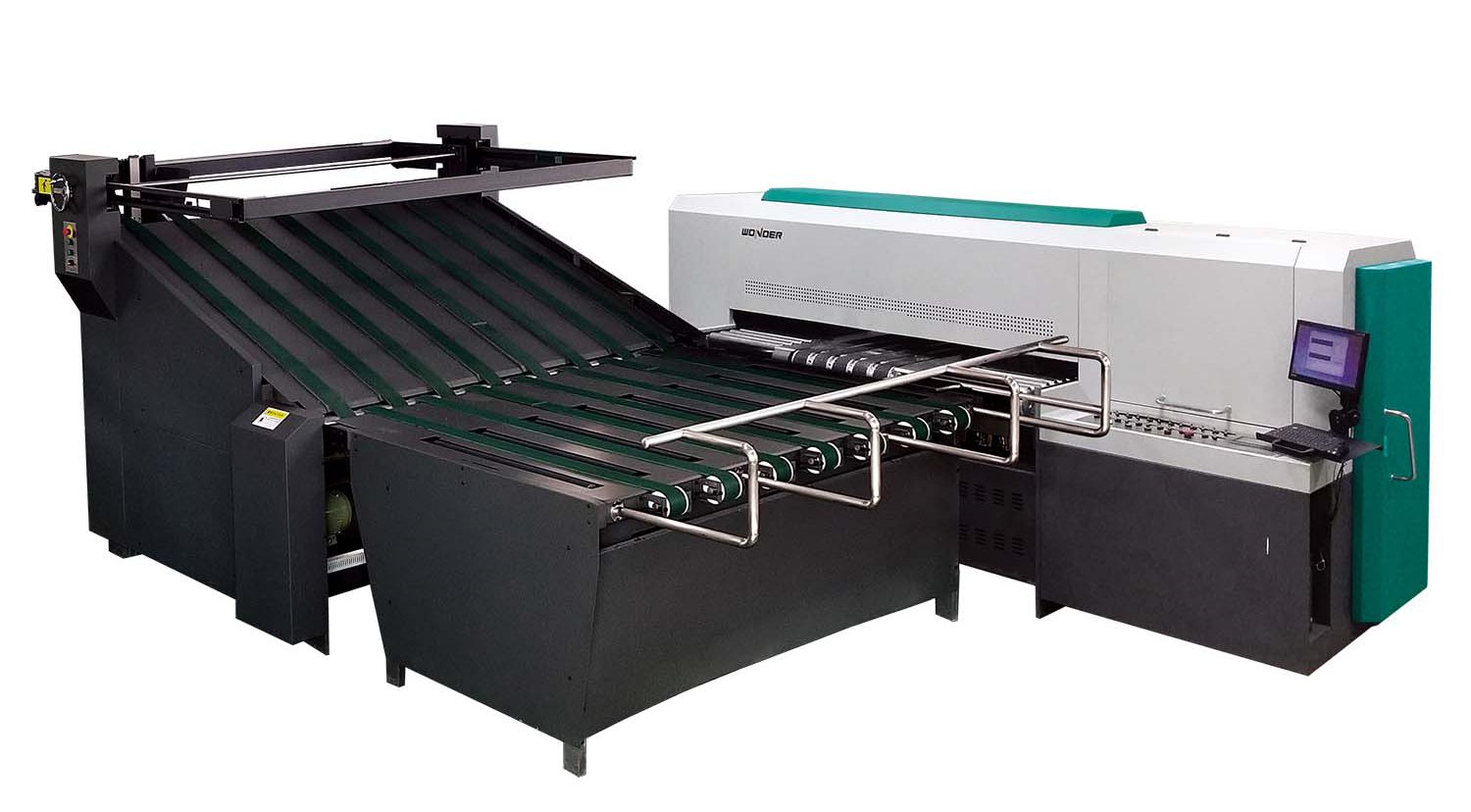

WDR200-46A Single Pass Water Based Inkjet Press

WD200UV-48A Inkjet Press

Technical Specifications

WD200UV-48A Inkjet Press

Print Head

Micro Piezo High Resolution Print Head

Number of Print Heads

46

Ink

Specially developed Waterbased ink

Number of Colours

4 (CMYK)

Print Head System

Temperature controlled system

Printing Resolution

≥ 300 dpi

Printing Speed

600 x 300 dpi - 1.5 Meter per second

600 x 600 dpi – 0.8 Meter per second

Print Area - Width x Length

1,220 mm x 2,400 mm

Print Head Adjustment

Between 2 mm and 4 mm

Sheet Size - Width x Length

1,800 mm x 2,400 mm

Feeding

Automatic

Ink Supply

Automatic

Substrate Thickness

1.5 mm - 20 mm.

Environment

Indoor Temperature: 15 - 30 Degree Celsius
Humidity: 20 - 70%

Power Supply

Approx. 21 KW, AC 380±10% V, 50 - 60 HZ
