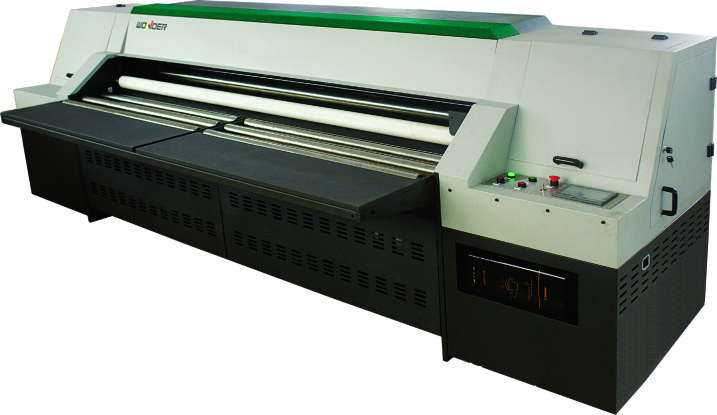

WD250 - 4A Printing Press
High Quality Digital Inkjet Printing System for Corrugates
Product Description
The WD250 Digital Printing Press is the fastest with 4 Piezo Print Head achieving 220 Sq. Mtr per hour and can handle sheet size 2.5 meter x 2 meter.
Now you can print custom, full color boxes with special promotions, personalized ad copy, and graphics – on demand. The print speed, small foot print, and price point of the WD250 opens new business opportunities and markets previously unserviced by the corrugated box and packaging industries.
Technical Specifications
| Print Head | High Precision Piezo Print Head |
| Number of Print Heads | 4 |
| Ink | Specially developed water based dye ink |
| Number of Colours | 4 (CMYK) |
| Print Head System | Temperature controlled system |
| Printing Resolution | 360 x 1,080 dpi |
| Printing Speed | 220 sq.meter per hour |
| Print - Width x Length | 2500 mm x 1360 mm (98.42" x 53.54") |
| Print Head Adjustment | Between 2 mm and 4 mm |
| Feeding | Automatic |
| Ink Supply | Automatic |
| Substrate Thickness | 1.5 mm - 35 mm. Note: At the time of manufacturing, machine can be customized to take a substrate thickness up to 50 mm |
| Environment | Indoor Temperature: 15 - 32 Degree Celcius Humidity: 20 x 70% |
| Power Supply | 4.5 kW, AC 220V, 50 - 60 HZ |
| Machine Size (L x W x H) | 3010 mm x 4162 mm x 1280 mm |
| Packing Size (L x W x H) | 4350 mm x 1820 mm x 1650 mm |
| Net Weight | 2,300 KG |
| Gross Weight | 2,500 KG |
WD250 - 8A Printing Press
High Quality Digital Inkjet Printing System for Corrugates
Product Description
The WD250 Digital Printing Press is the fastest with 8 Piezo Print Head achieving 440 Sq. Mtr per hour and can handle sheet size 2.5 meter x 2 meter.
Now you can print custom, full color boxes with special promotions, personalized ad copy, and graphics – on demand. The print speed, small foot print, and price point of the WD250 opens new business opportunities and markets previously unserviced by the corrugated box and packaging industries.
Technical Specifications
| Print Head | High Precision Piezo Print Head |
| Number of Print Heads | 8 |
| Ink | Specially developed water based dye ink |
| Number of Colours | 4 (CMYK) |
| Print Head System | Temperature controlled system |
| Printing Resolution | 360 x 1,080 dpi |
| Printing Speed | 440 sq.meter per hour |
| Print - Width x Length | 2500 mm x 1360 mm (98.42" x 53.54") |
| Print Head Adjustment | Between 2 mm and 4 mm |
| Feeding | Automatic |
| Ink Supply | Automatic |
| Substrate Thickness | 1.5 mm - 35 mm. Note: At the time of manufacturing, machine can be customized to take a substrate thickness up to 50 mm |
| Environment | Indoor Temperature: 15 - 32 Degree Celcius Humidity: 20 x 70% |
| Power Supply | 4.5 kW, AC 220V, 50 - 60 HZ |
| Machine Size (L x W x H) | 3010 mm x 4162 mm x 1280 mm |
| Packing Size (L x W x H) | 4350 mm x 1820 mm x 1650 mm |
| Net Weight | 2,800 KG |
| Gross Weight | 3,000 KG |
