AeroFold Plus

UCHIDA’s Paper Folding Machine The AeroFold Plus. Its belt suction feeding system can feed and fold up to SRA3 size of various types of papers, such as offset, coated, art, digital printed papers and more. Now it has a more powerful motor, that enhances its productivity to up to 18,000 folds per an hour.

Features

Uchida paper folding machine AeroFold Plus can fold up to SRA3 size of various types of papers such as offset, coated, digital printed papers etc. by its belt suction feeding system.

  • Paper weight up to 160 gsm (up to 230 gsm for single fold)
  • Paper size up to 330(W) x 488(L) mm / Folding speed up to 18,000 sheets/hour (single fold)
  • Memory function for fine folding position adjustments & odd size papers.
  • Error detection & indication makes it easy to diagnose.
  • Double feed detection alarms when it feeds double sheets.
  • With optional accessories, perforating, scoring, folding longer sheets becomes possible.

Please visit the resources section to download the brochure

EZF-200/100

Manual folding position setting, Up to 14,400 sheets/minute, 4 digit counter indicates number of papers folded.

Features

Affordable folders covering major folding types for a wide range of papers

Features special folding modes

  • Noise reduction mode – makes less folding noise.
  • Thick paper mode – gives bigger folding impact to papers.
  • Quick mode – Fastest folding speed, 14,400 sheets per hour.

The error map and error codes makes it easier to clear jammed paper

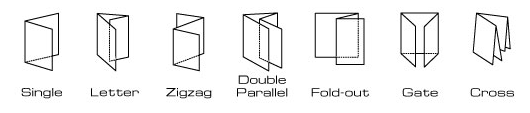

EZF-200/100 Paper Folding Types


Please Note: When cross folding, the paper needs to be passed through the machine twice.


Please visit the resources section to download the brochure

EZF-500/600

Automatic paper size detection. Up to 14,400 sheets/minute. Pre-programmed 6 folding patterns

Features

Folding Speed

As with EZF-100/200, EZF-500/600 can fold 14,400 sheets per hour as maximum. Compared with F-43N/F-47N, additional 60 sheets can be folded in a minute!

Color touch screen

Our new models EZF-500/600 can be operated via the color touch screen. One can see the setting, jam map, counter and so on on the screen. It would make operations easier for the customer

Double feed detection

Thanks to double feed detection sensor, you can prevent double feed and miscounting materials.

Storage Memory for Odd Size Paper

In the previous models F-43N/F-47N, 3 kinds of folding pattern of odd-size paper could be memorized and stored. In EZF-500, we can store 12 kinds of folding pattern of odd size and in EZF-600 we can store 24 kinds of folding pattern of odd size.

EZF-600/500 Paper Folding Types

Please Note: When cross folding, the paper needs to be passed through the machine twice.


Please visit the resources section to download the brochure
